An intermittent bonded ribbon production line is used to manufacture flexible fiber groups for contemporary, high-count cable architectures. It ensures fibers are aligned for expedited mass fusion splicing, yet allows the fiber group to remain flexible within a compact cable core.
Compared with continuously bonded ribbons, intermittent bonded ribbons feature discrete bonding points at predetermined intervals. This strategic placement allows fibers to remain aligned while the ribbon can flexibly roll into circular loose tubes and other confined spaces.
Network engineers employ this method when faced with constraints in duct space, splice closures, and equipment racks. A meticulously crafted ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
Intermittent Bonded Ribbon Production Line Fiber Secondary Coating Line SZ Stranding Line
Important Points
- An intermittent bonded ribbon production line supports flexible, high-density fiber layouts.
- Separated bond points maintain optical fiber order without creating a rigid ribbon.
- Flexible ribbon structures allow manufacturers to place more fibers inside compact circular cables.
- Stable fiber order helps accelerate mass fusion splicing.
- Ribbon technology is used across data centers, telecom routes, and optical access networks.
Overview Of An Intermittent Bonded Ribbon Production Line
Intermittent bonded ribbon production enables the creation of fiber designs that balance compactness with usability. This method involves forming bonds at planned positions, allowing for the movement of fiber subunits between these points.
The method enables the incorporation of a higher number of fibers within constrained duct spaces. It also helps maintain the organized ribbon structure, essential for efficient splicing and cable assembly processes.
What Is An Intermittently Bonded Optical Fiber Ribbon?
An intermittently bonded optical fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds are left flexible, enabling the ribbon to adopt various configurations without rigidification.
This configuration is often referred to as a rollable, flexible, or spider web ribbon. It contrasts with the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
When splicing is performed, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers form compact bundles, optimizing space utilization within the cable.
Why Flexible Ribbon Technology Matters For High-Density Fiber Networks
Fiber network planners must address the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure allows ribbon groups to fit into smaller cable cores, preserving fiber order.
The fiber density ratio is a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding can improve this ratio, allowing ribbon groups to occupy available spaces within the cable.
For network installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

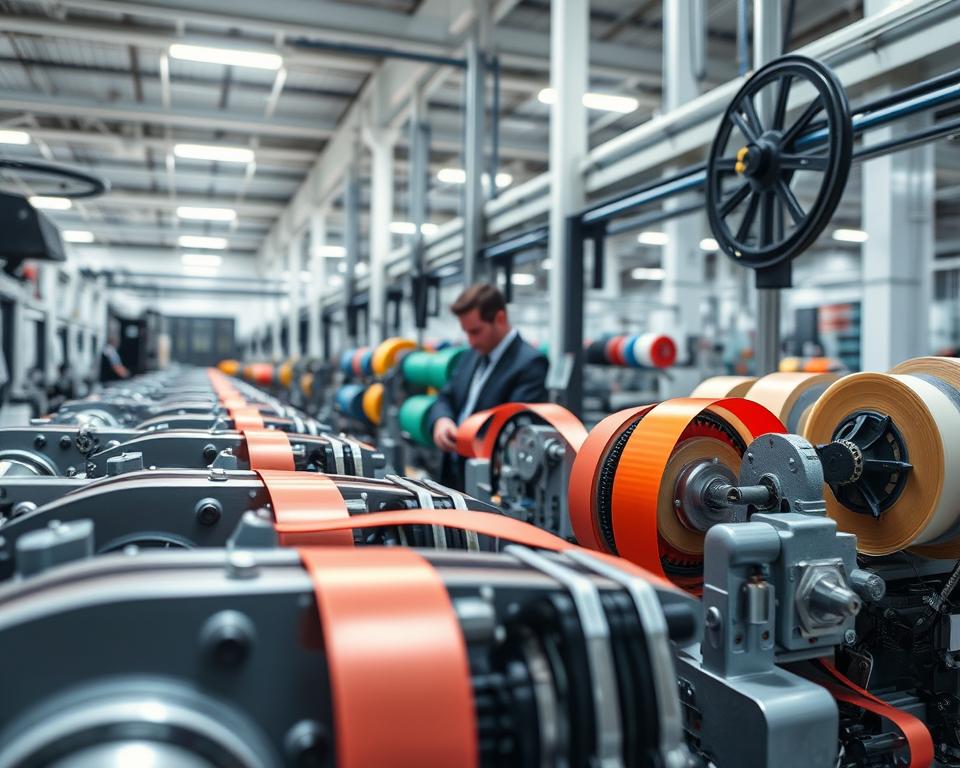

Intermittent Bonded Ribbon Production Line
| Ribbon Characteristic | Intermittently Bonded Ribbon Design | Traditional Continuous Ribbon |
|---|---|---|
| Bond pattern | Discrete bonds at predetermined intervals | Continuous bonds along the ribbon length |
| Fiber configuration between bond points | Can bend, roll, or fold for dense packing | Maintains a largely fixed flat profile |
| Splicing position | Can be arranged flat for mass fusion splicing | Is continuously maintained in a flat ribbon shape |
| Role in cable packing | Allows compact and flexible subunit positioning | Relies on a relatively rigid ribbon stack |
| Common cable application | Flexible ribbon and high-density fiber cable designs | Standard flat ribbon cable designs |
Intermittent Bonded Ribbon Construction And Material Requirements
A flexible bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture facilitates dense cable configurations while allowing effortless separation during handling, routing, and splicing.
The selection of materials significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must maintain its fibers securely without imparting undue stiffness to the ribbon.
Fiber Count And Subunit Arrangement
Intermittently bonded ribbons can contain 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A typical 12-fiber design may use six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
The inclusion of small gaps between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Construction Feature | Typical Arrangement | Process Purpose |
|---|---|---|
| Fiber count | Configurations of 4, 8, 12, 24, or up to 36 fibers | Matches cable density and splice capacity |
| Fiber subunit layout | Two neighboring fibers in each optical fiber subunit | Maintains predictable separation between subunits |
| Fiber spacing in a subunit | Contacting fibers or spacing of no more than 1.5 fiber diameters | Maintains a compact and stable profile |
| Subunit separation gap | A typical range of 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
UV-Curable Resin With Wet-On-Wet Bonding
Subunit coatings and bonding materials frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
Wet-on-wet bonding produces a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
UV-curable resin materials can blend at the interface before curing. This supports molecular interaction between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Essential Equipment In An Intermittent Bonded Ribbon Production Line
A fiber ribbon production line combines advanced motion control with meticulous material handling. Each station helps fibers stay clean, aligned, and stable from the initial payoff to the final winding.
The line equipment manages adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to craft a flexible custom ribbon cable, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control System
Payoff units deliver individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
During ribbon production, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Coating Die With Discrete Bond Applicator
The coating system applies a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
A bond applicator then applies a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Equipment | Core Function | Process Benefit |
|---|---|---|
| Fiber payoff and tension unit | Delivers fibers while maintaining regulated tension | Helps prevent fiber twist and inconsistent loading |
| Fiber coating die | Creates coated optical fiber subunits | Maintains consistent subunit shape and width |
| Discrete bond applicator | Applies resin at controlled intervals | Forms flexible connections between neighboring subunits |
| UV cure and take-up system | Cures and cools the ribbon before inspection and winding | Protects bond quality and preserves fiber order |
UV Curing, Cooling, And Ribbon Take-Up Equipment
UV lamps cure the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling systems reduce ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
The take-up system winds the finished ribbon with low, even tension. Proper winding preserves the finished bonded structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Preparation, Alignment, And Color Sequence Control
A stable ribbon cable begins with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification During Splicing And Maintenance
Consistent fiber color identification is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
When fiber counts increase, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Ribbon Fiber Position | Fiber Identification Color | Production Purpose |
|---|---|---|
| 01 | Blue | Marks the first position in the standard color order |
| 2 | Standard orange | Provides rapid visual identification |
| 3 | Green | Maintains the specified planar order |
| 4 | Brown | Helps verify subunit placement |
| 5 | Slate | Supports identification around the middle of the sequence |
| 06 | Standard white | Provides strong visual contrast for inspection |
| 07 | Standard red | Helps maintain accurate splice documentation |
| 08 | Black | Maintains sequence recognition in trays |
| 9 | Standard yellow | Supports rapid identification during restoration work |
| 10 | Standard violet | Helps distinguish later positions in the standard sequence |
| 11 | Standard rose | Supports high-count ribbon identification |
| Position 12 | Aqua | Completes the standard color order |
Avoiding Fiber Twist And Tension Imbalance
Payoff systems and guides are essential in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Production personnel carefully check tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
UV Curing And Intermittent Bond Application Process
Intermittent bonding connects fiber subunits without solidifying the ribbon into a rigid form. This method facilitates compact routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Bonds At Predetermined Intervals
Bond applicators place resin at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
A precise applicator dispenses a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends help minimize localized stress changes when the cable bends or twists.
Creating Flexible And Strong Bond Interfaces
Wet-on-wet bonding involves applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
The resulting gradient influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features improve resistance to bond peeling while facilitating separation when required.
Controlling UV Curing Performance
UV curing systems must deliver consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Process personnel carefully track bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Quality Control For Fiber Ribbon And Flexible Flat Cable Output
Verifying every flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Regular inspections are critical in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Inspection Of Bond Spacing, Ribbon Width, And Thickness
The spacing between bonds is a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Quality checks are performed to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Quality Control Point | Inspection Requirement | Process Value |
|---|---|---|
| Fiber sequence identification | Fiber count, color sequence, and position | Supports correct splicing and maintenance work |
| Bonding pattern | Bond location, spacing, and subunit connection | Maintains flexibility and fiber organization |
| Finished ribbon profile | Width, thickness, and flatness | Supports compatibility with handling and splice equipment |
| Ribbon surface condition | Cure quality, coating completeness, and visible defects | Protects the ribbon against damage during take-up |
Optical And Mechanical Performance Testing
Mechanical evaluations examine on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing includes evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Attenuation checks and splice-related handling tests are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Production Efficiency, Automation, And Precision Winding
The essence of efficient ribbon production on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Process Data Monitoring And Line Synchronization
Production controls coordinate payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Manufacturing data records capture fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Accurate bond timing keeps discrete joints evenly spaced.
- Dimension monitoring identifies width and thickness variations quickly.
- Winding data facilitates lot tracking and downstream handling.
Ribbon Winding For Downstream Cable Production
A cable precision winder ensures the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Completed ribbon packages can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
For custom ribbon cables, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Monitoring Area | Process Control Focus | Downstream Process Benefit |
|---|---|---|
| Optical fiber payoff | Stable tension and correct color sequence | Consistent ribbon organization during cable assembly |
| Bond application | Controlled bond intervals and resin quantity | Predictable ribbon flexibility during handling |
| UV curing process | Regulated UV intensity and exposure duration | Reliable bond strength before winding |
| Cable winding system | Uniform traverse with controlled spool tension and layering | Smooth payout for central tube or loose tube loading |
Applications, Splicing, And Connector Planning For Ribbon Cable
Ribbon fiber is instrumental in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A properly planned ribbon cable system enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Mass Fusion Splicing Advantages
A ribbon fusion splicer allows the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
Mass fusion processing lowers handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
Loose tube cable, by comparison necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Dense Link Connection Planning
High-density fiber links often employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
Connection planning also includes transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Planning Item | What It Determines | Common Application |
|---|---|---|
| Number of ribbon fibers | Splice capacity and cassette selection | Backbone links using 12-fiber or 24-fiber ribbons |
| MPO or MTP multi-fiber connector | Connector polarity, gender, and port compatibility | High-density data center and 5G equipment-room connections |
| Multi-fiber harness or fanout assembly | Transition from multi-fiber connections to single-fiber ports | Network switch connections and patch fields |
| Link loss budget | Permitted optical loss across splices, connectors, and fiber | High-speed data transmission cable routes |
Shanghai Weiye OFC Equipment For Fiber Ribbon Line Projects
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to maintain stable production, facilitate clear operator control, and enable seamless integration into production lines.
For projects requiring an intermittent bonded ribbon production line, SHWY equips each phase of ribbon handling, curing, and winding with suitable machinery.
SHWY Experience In Optical Fiber And Cable Machinery
Founded in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
SHWY became independent in 2020, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
Relevant Production Equipment From SHWY
The SHWY equipment portfolio includes a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
For fiber ribbon manufacturing projects, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
The company’s extensive range further includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Summary
An intermittent bonded ribbon production line integrates fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step maintains organized fiber positioning while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The finished ribbon cable enables efficient mass fusion splicing and organized fiber management. It is particularly useful for networks with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Effective project planning extends beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
